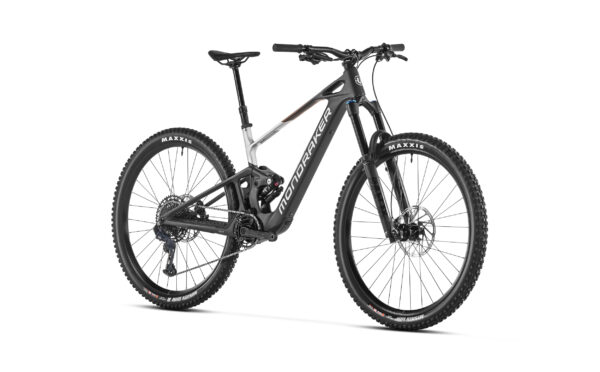

Mondraker Neat R 2024

£6,799.00 VAT included

SKU: N/A Categories: , , Tags: , ,

The all-new lightweight electric mountain bike from Mondraker brings the ultimate option for riders who want the latest components paired with modern frame design ideology. Refined and finely tuned stealth carbon frame matched with the light, powerful TQ motor lays the base for an absolute weapon of an E-MTB.

Mondraker’s electric MTB line-up boasts some of the best riding (and looking) bikes out there, the NEAT fits right in with the family and was designed from the ground up to be the most nimble, manoeuvrable and lightest in Mondraker’s range.

At the heart of the NEAT is the TQ drive system, this remarkable system achieves the dream of small size, light weight, reliability, low noise level and most importantly real, useable power.

TQ-HPR50 –

Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%

Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.

The entry model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels


  • S: 160cm – 170cm
  • M: 165cm – 180cm
  • L: 175cm – 185cm
  • XL: 185cm – 190cm+
  • MATERIALCarbon
  • REAR TRAVEL150mm
  • WARRANTYLifetime (frame)

Frame – Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock – Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings – Medium compression, medium rebound, air volume spacer 0.4
Fork – Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset – Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing
Stem – Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar – Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips – Onoff Desert, 1lock-on, 135mm
Seatpost – Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle – Fizik Terra Aidon Slim X5
Front brake – Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake – Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever – Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims – Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes – Mavic J-bend double butted, contactless lacing
Front hub – Mavic, Boost 15x110mm, IS 6 bolts
Rear hub – Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire – Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire – Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset – E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings – Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain – Sram NX Eagle, 12s, Powerlock
Rear derailleur – Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers – Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette – Sram PG-1230, 11-50T, 12s
Derailleur hanger – Sram UDH
Others – Mondraker custom design Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight – 18.9 kg – Max System Weight 150kg.
Display – TQ HPR display V01
Motor – TQ HPR-50
Battery – TQ HPR-50 360Wh integrated and removable

Frame Size

Extra Large, Large, Medium, Small
