The adapter required to convert your SPEEDHUB to splined sprocket use.

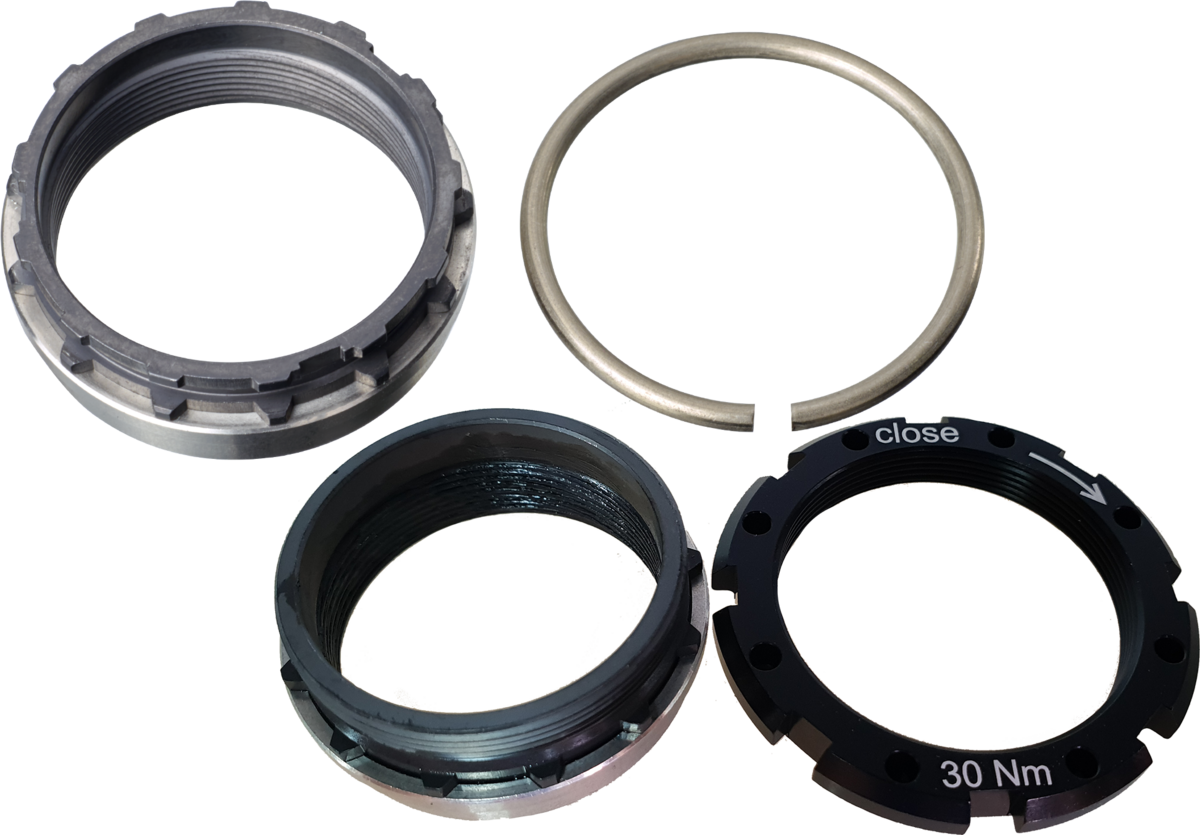

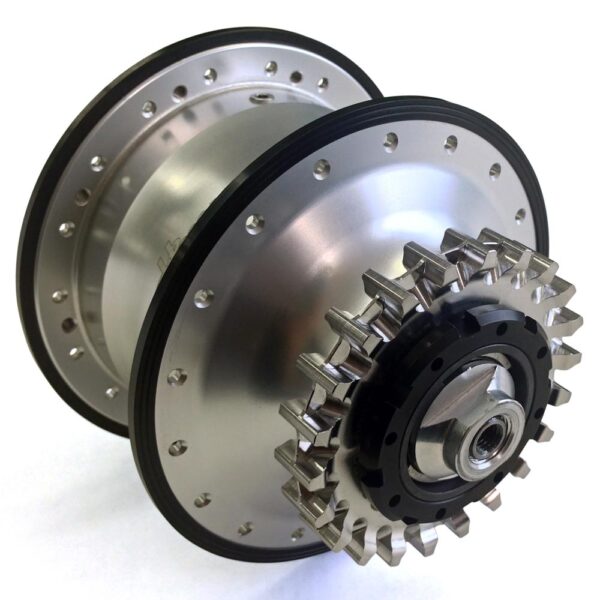

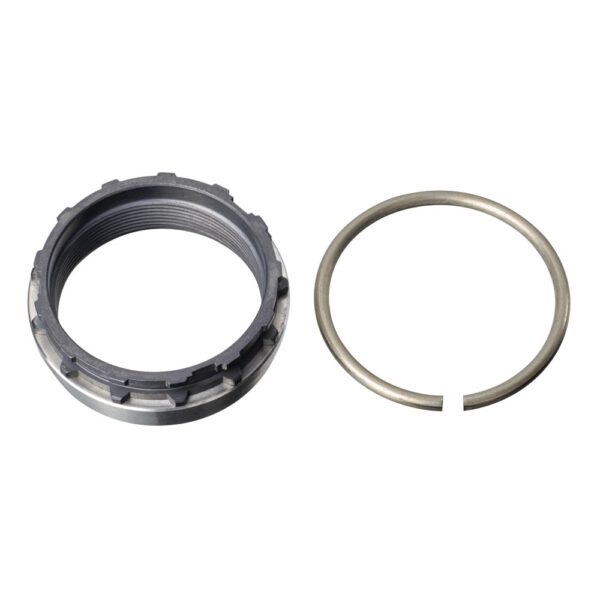

We offer the splined carrier in four versions – standard, slim (for specially narrow rear frame constructions), Lock-Ring (for Carbon Drive belt sprockets) & Slim Lock-Ring (for Carbon Drive belt sprockets mounted on frames with an especially narrow construction). Both regular and slim versions come complete with the snap-ring for securing Rohloff Splined Sprockets to them, both Lock-Ring versions come with a lock-ring to secure Carbon Drive sprockets to them (can also be used with chain sprockets of 15 tooth and above).
These adapters may alter the chainline from the original chain/beltline produced with the old threaded versions. Please check the table below for specifications:
The adapter required to convert your SPEEDHUB to splined sprocket use.
We offer the splined carrier in four versions – standard, slim (for specially narrow rear frame constructions), Lock-Ring (for Carbon Drive belt sprockets) & Slim Lock-Ring (for Carbon Drive belt sprockets mounted on frames with an especially narrow construction). Both regular and slim versions come complete with the snap-ring for securing Rohloff Splined Sprockets to them, both Lock-Ring versions come with a lock-ring to secure Carbon Drive sprockets to them (can also be used with chain sprockets of 15 tooth and above).
These adapters may alter the chainline from the original chain/beltline produced with the old threaded versions. Please check the table below for specifications:

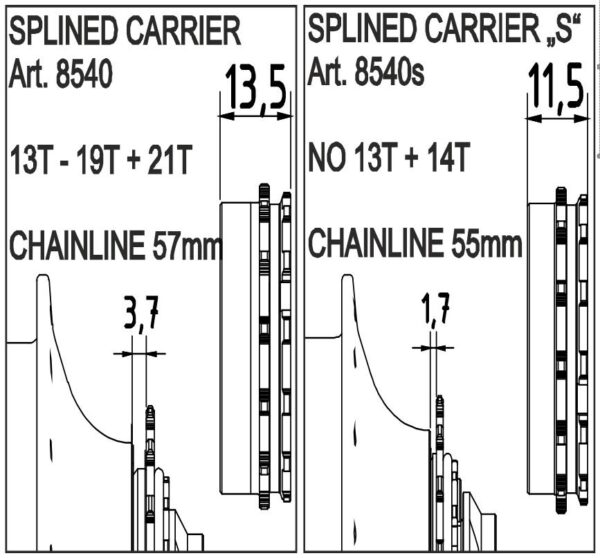

| 8540 Splined | 8540S Splined S | 8540L Splined Lock-Ring | 8540SL Slim Splined Lock-Ring | |
| 13-14 | ✔️ | ❌ | ❌ | ❌ |
| 15-19 | ✔️ | ✔️ | ✔️ | ✔️ |
| 21 | ✔️ | ✔️ | ✔️ | ✔️ |
| Chainline | +3mm | +1mm | +3mm | +1mm |
| CarbonDrive Beltline | ❌ | ❌ | +/-0mm | -2mm |
| Chain Tensioner | adjust | position | if | necessary |
| Chain Case | check | compatibility | ❌ | ❌ |
| Chain lines (- 10mm) | ❌ | ✔️ | ❌ | ✔️ |
