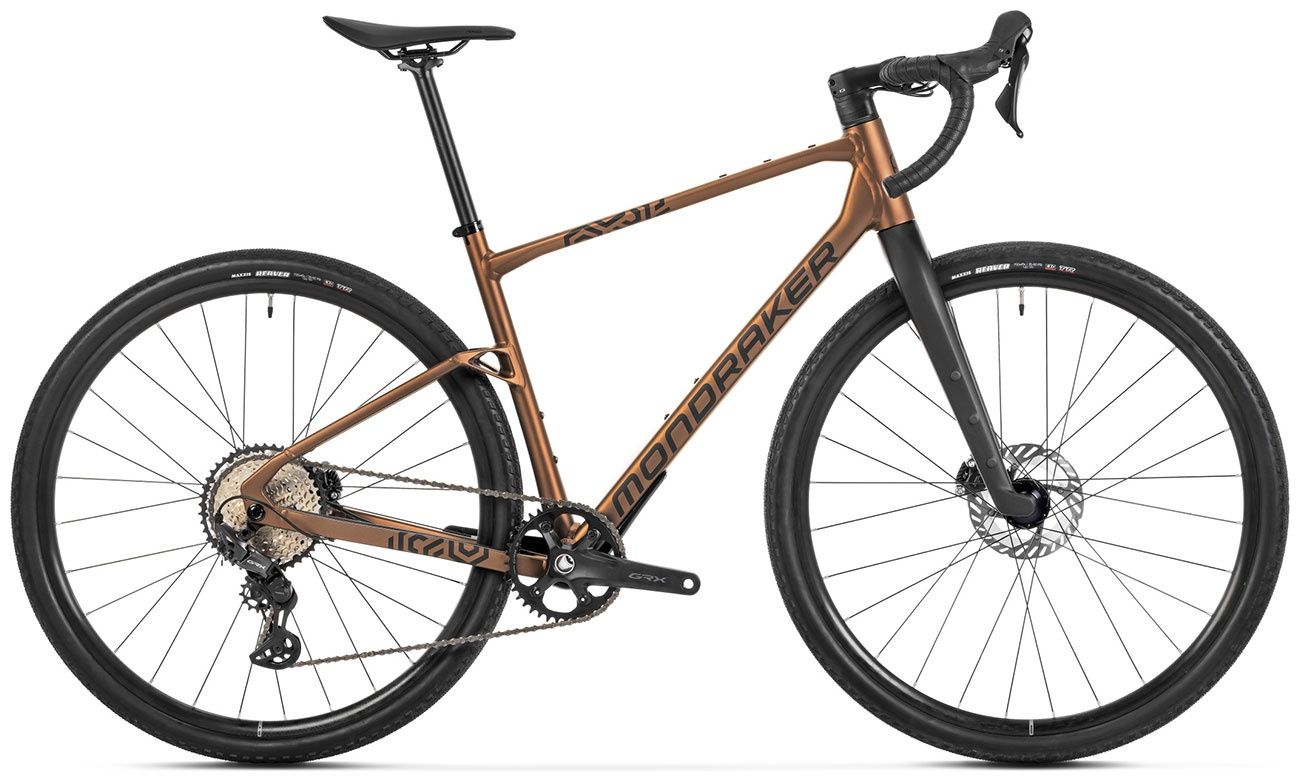

Mondraker 2026 Arid S

Every ride is an opportunity to try something new. Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!

Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the gravel scene and the world beyond your doorstep.

Key Features:

Frame

• Arid alloy
• T47 bottom bracket
• Tapered head tube
• HHG internal cable routing
• 12x142mm rear axle
• 1X drivetrain design
• Flatmount brake compatible

Sizes

• S: 410mm
• M: 450mm
• ML: 480mm
• L: 510mm
• XL: 540mm

Fork

• Stealth Air Carbon tapered steerer tube
• HHG
• Flat mount integrated fork

Headset

• Onoff IS52/IS52
• 1-1/8", 1.5" head tube
• Sealed bearings
• Internal cable routing

Stem

• Onoff S3 6061 T6 Alloy
• 31.8mm barbore
• Rise: -7º
• Length:
  • S: 60mm
  • M: 70mm
  • ML: 70mm
  • L: 80mm
  • XL: 90mm

Handlebar

• OnOff S3 GR 16º bar flare
• Width:
  • S: 440mm
  • M: 440mm
  • L: 460mm
  • XL: 460mm

Grips

• OnOff HEX Bartape

Seatpost

• Onoff S9 Carbon 0-R
• Diameter: 27.2mm
• Length: 400mm

Saddle

• FIZIK Terra Argo X5 140mm

Braking System:

• Front Brake: Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Rear Brake: Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Brake Lever: Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever

Wheelset:

• Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear
• Spokes: Mavic Steel double butted flat spokes
• Front Hub: Mavic, 12x100mm, IS 6 bolts
• Rear Hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub

Tires:

• Front Tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear Tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Drivetrain:

• Crankset: Shimano GRX RX-610
  • S: 170mm
  • M: 170mm
  • ML: 172.5mm
  • L: 172.5mm
  • XL: 175mm, CL 49.7
• Rings: Shimano 40T, direct mount, steel
• Bottom Bracket: Token T47 BSA sealed bearings, 85.5mm
• Chain: Shimano SLX M7100, Quick link
• Rear Derailleur: Shimano GRX RX-822-GS, 12s
• Shift Levers: Shimano GRX RX-610 dual control, alloy lever
• Cassette: Shimano SLX M7100, hiperglide+, 10-45, 12s

The Mondraker Arid is designed for adventure, offering the perfect combination of performance, reliability, and versatility to take you wherever the road—or trail—leads. Make every ride your own with this exceptional gravel bike!
