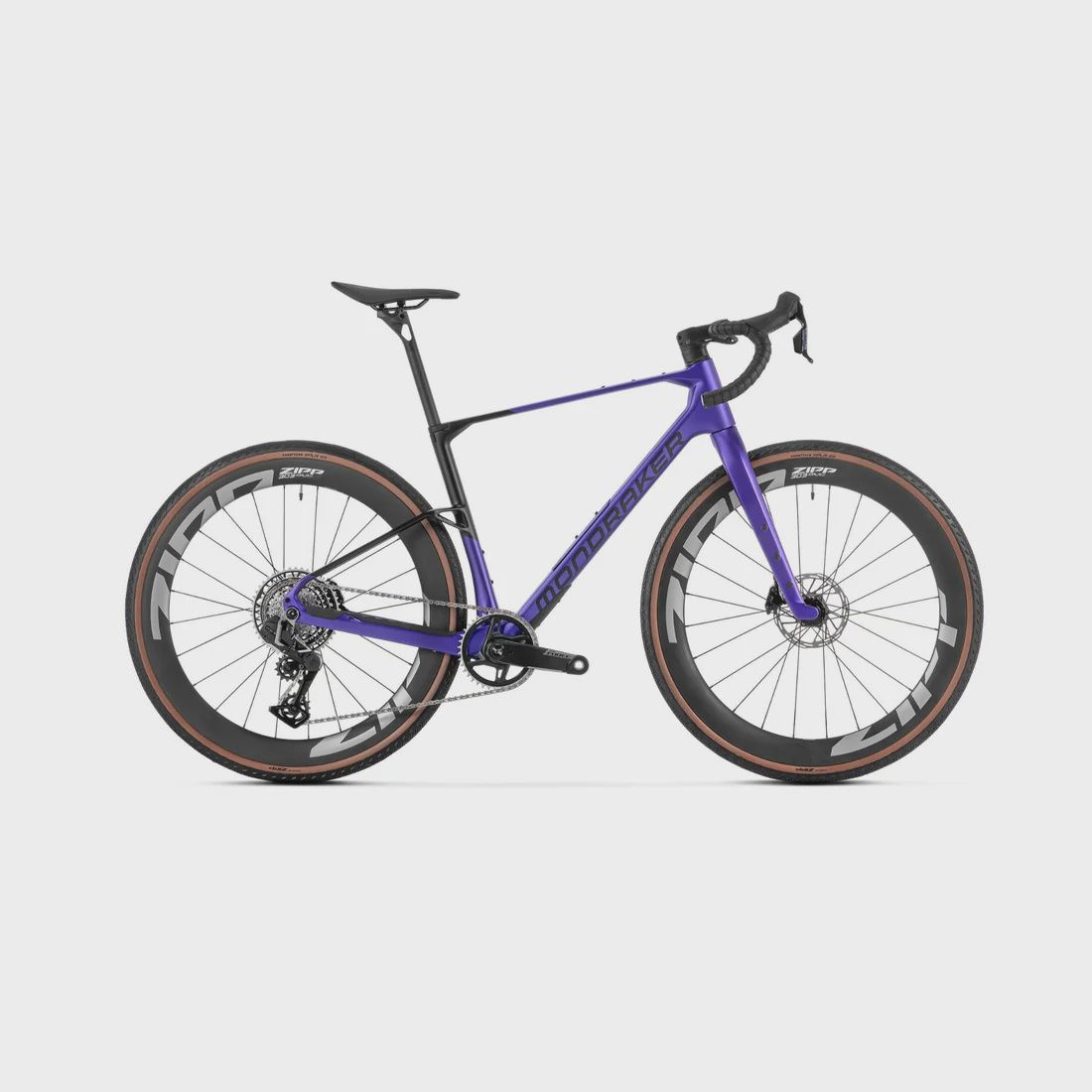

Mondraker Arid Carbon RR 2026

Mondraker's razor-focused gravel bike comes in glorious new colourways and banging build kits. The Arid leads the new wave of drop-bar off-road bikes with finely tuned suspension and pro-level components, making it rapid, engaging, and most importantly, unbeatable on the trails.

---

Lightweight and Durable Frame

The modern frame features Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. A standout feature is the distinctive twin-spar rear design, which enhances compliance and comfort on rough terrains. The bike weighs in at a svelte 8.8kg.

---

Trail-Optimized Geometry

The Arid boasts a longer reach and slacker head angle, inspired by mountain bike configurations. This design promotes stability and confidence on challenging trails. It accommodates tires up to 50mm, ensuring adaptability across various surfaces.

Additionally, practicality is enhanced with integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.

---

Rave Reviews

"So capable on the trails I'd happily leave my mountain bike at home."
- Bike Radar (4.5 stars out of 5)

---

Sizing Guide

• S: <165cm
• M: 165-175cm
• M/L: 170-185cm
• L: 180-190cm
• XL: 190cm+

---

Key Components & Specifications

Frame

• Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Fork

• Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork.

Headset

• Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing.

Stem

• Onoff Semi-Integrated, 31.8mm barbore, rise: -7°.
  Length:
  • S: 60mm
  • M: 70mm
  • M/L: 70mm
  • L: 80mm
  • XL: 90mm

Handlebar

• Onoff S9 GR CARBON 16º bar flare.
  Width:
  • S: 420mm
  • M: 420mm
  • M/L: 440mm
  • L: 460mm
  • XL: 460mm

Grips

• Onoff HEX Bartape.

Seatpost

• Onoff S9 Carbon 15-R, diameter 27.2mm.
  Length:
  • S: 400mm
  • M: 400mm
  • M/L: 400mm
  • L: 450mm
  • XL: 450mm

Saddle

• Fizik Vento Argo X5 140mm.

Brakes

• Front Brake: Sram Force AXS HRD, 2-piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad.
• Rear Brake: Sram Force AXS HRD, 2-piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad.
• Brake Lever: Sram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever.

Wheels

• Rims: Zipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes.
• Spokes: CX-Sprint - Black.
• Front Hub: 76 Disc Brake, 12x100mm, Centerlock.
• Rear Hub: 176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock, XDR Freehub.

Tires

• Front & Rear: Goodyear XPLR Inter 700x45.

Drivetrain

• Crankset: Sram Force XPLR AXS Carbon, Power meter, DUB WIDE axle.
  Length:
  • S: 165mm
  • M: 165mm
  • M/L: 170mm
  • L: 172.5mm
  • XL: 172.5mm.
• Rings: Sram 40T Direct mount, alloy, narrow-wide.
• Bottom Bracket: Sram DUB T47 BSA, sealed bearings, 85.5mm.
• Chain: Sram Force, Flattop, 13s, Powerlock.
• Rear Derailleur: Sram Force XPLR AXS, 13s.
• Shift Levers: Sram Force AXS HRD, 13s.
• Cassette: Sram XG-1371, 10-46T, 13s.

---

The Mondraker Arid Carbon RR 2026 is the ultimate choice for gravel enthusiasts seeking cutting-edge design, unmatched performance, and trail-ready confidence.
