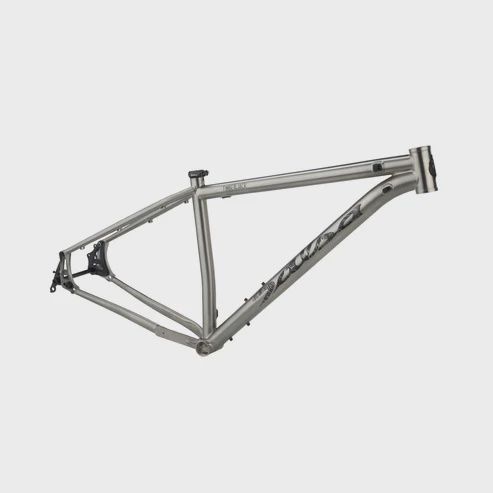

Salsa Timberjack Ti Frame

Now oNly £1500.00, Was £3100.00.  Small and X-Large Only

Speak to us about custom build options

Timberjack Ti frame is equally at home pushing the limits on singletrack, or bikepacking to places you've yet to discover. This custom titanium build features modern trail bike geometry, short chainstays for nimble scrambling, and clearance for either 29'' or 27.5+ wheels and tyres.

• Design Wheel/Tire Size: 27.5 x 3.0" max (at 427mm rear center)
• Alternative Wheel/Tire Size: 29 x 2.6" max (at 437mm rear center)
• Suspension Fork Length: (Travel) 511-541mm (100-130mm)
• Rigid Fork Length: 483-502mm
• Fork Offset: 45-51mm
• Headset-Upper: ZS44
• Headset-Lower: EC44
• Seatpost: 31.6mm
• Seat Collar: 35mm
• Dropper Compatible (Routing): Yes
• Front Derailleur Mount: 148mm rear spacing: high direct mount (29mm offset) Problem Solvers Bracket (FS1328)
  142mm rear spacing: high direct mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
• Bottom Bracket: 73mm BSA, threaded
• Crankset (Max Ring): 1x crankset: 32t max.
  BOOST or 30t max.
  Non-BOOST: 2x crankset: 36/24t max. BOOST
• Rear Brake: (Rotor) 51mm I.S., (160-180mm)
• Rear Spacing 148mm or 142mm thru-axle
  135mm QR with Alternator Reduction Plates
• Rear Axle Size: 148mm rear spacing: 12 x 180L, TP = 1.75, TL = 20
  142mm rear spacing: 12 x 174L, TP = 1.75, TL = 20
  135mm rear spacing: quick-release
• Derailleur Hanger:
  QR = FS1312
  TA = FS1373
  SS = FS1318
  SSTA = FS1375
  Rohloff = FS1371
  TA Kit = FS1370
• Rack Mounts: Yes, via Alternator Rack System
• Fender Mounts: No
• Frame Weight: 4 lb, 10 oz for Medium size w/ Lip-Lock
