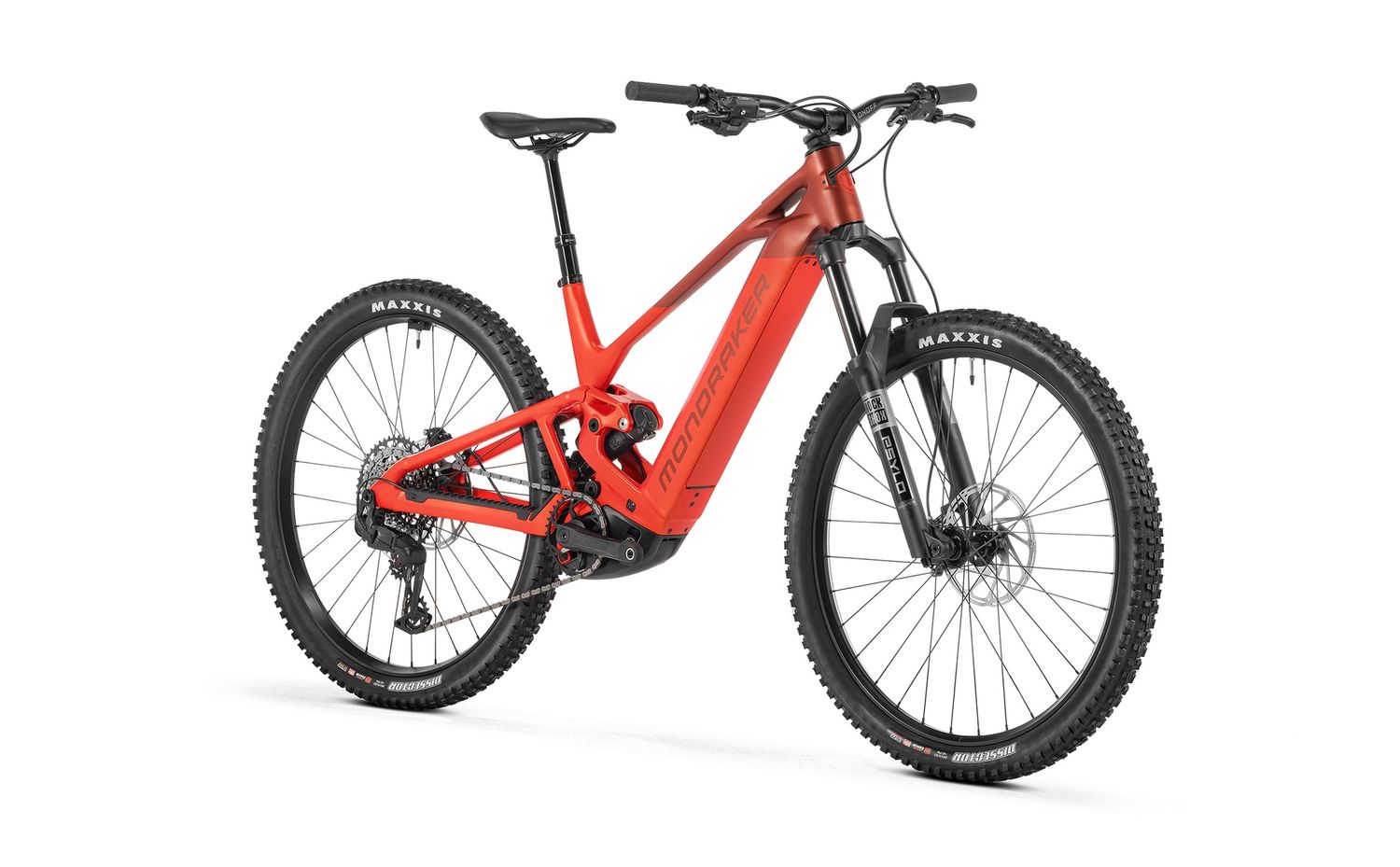

Scree S

Inspired by Mondraker’s most iconic enduro ebike, the Scree is the new arrival in Mondraker’s ebike lineup, and the first ebike model developed specifically for trail riding. It inherits the technology and performance of the Crafty, reinterpreted into a versatile, playful format that delivers exactly what riders new to the world of ebikes are looking for.

Our all-new full-power ebike with a Stealth Alloy aluminium frame; the Scree tailors all of Mondraker’s power, design, and technology to the demands of the most versatile, social, and fun side of trail riding.

---

Key Features

FRAME

• Scree 6061 Alloy Stealth Evo
  • Updated Zero Suspension System
  • 130mm travel
  • Forward Geometry
  • Internal removable battery
  • Boost 12x148mm rear axle
  • UDH tapered head tube
  • One-piece Monoblock upper link
  • HHG internal cable routing
  • MAX capacity sealed bearings
  • Oversize 15mm axles
  • Exclusive plastic motor covers

SIZES

• S: 380mm
• M: 410mm
• ML: 435mm
• L: 460mm
• XL: 490mm

REAR SHOCK

• RockShox Deluxe Select DebonAir
  • Dimensions: 165x45mm
  • Settings: Low-speed rebound, air preload
  • Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

• C37 compression, R85 rebound, 4 Tokens

FORK

• RockShox Psylo Silver 29
  • 150mm travel
  • Motion control damper
  • Solo Air
  • Tapered steerer tube
  • Boost 15x110mm axle
  • 35mm steel stanchions
  • 44mm offset
  • Settings: Compression adjustment at low-speed to lock, rebound, air preload

---

Components

HEADSET

• Acros custom ZS56/ZS56
  • 1-1/8”, 1.5” head tube
  • Internal cable routing
  • Sealing plugs without blocklock

STEM

• Onoff S6 30mm 0º
  • 6061 forged alloy + CNC
  • 31.8mm barbore

HANDLEBAR

• Onoff S6 1.0 7050 alloy
  • Rise: 25mm
  • Width: 800mm
  • 8º backsweep, 5º upsweep
  • 31.8mm barbore
  • L and XL size: 38mm rise

GRIPS

• Onoff Desert Pro
  • CNC lock-on
  • 135mm
  • L and XL: Thicker size

SEATPOST

• X-Fusion Manic
  • Diameter: 31.6mm
  • 1X Remote lever
  • S size: 361x125mm
  • M size: 425x150mm
  • ML size: 469x170mm
  • L size: 521x190mm
  • XL size: 531x200

SADDLE

• Ergon SMC10 Gel

---

Braking System

FRONT BRAKE

• Sram DB6
  • 4-piston caliper
  • Centerline 200mm IS 6 bolts one-piece rotor
  • Steel-backed organic pads

REAR BRAKE

• Sram DB6
  • 4-piston caliper
  • Centerline 200mm IS 6 bolts one-piece rotor
  • Steel-backed organic pads

BRAKE LEVER

• Sram DB6
  • Tool reach adjust
  • Lever pivot bushings

---

Wheels

RIMS

• WTB Sportterra Tough
  • 6061 Welded Aluminum
  • 30mm internal width
  • Tubeless ready
  • 28 spokes

SPOKES

• WTB Straight gauge spokes
• Black brass locking nipples
