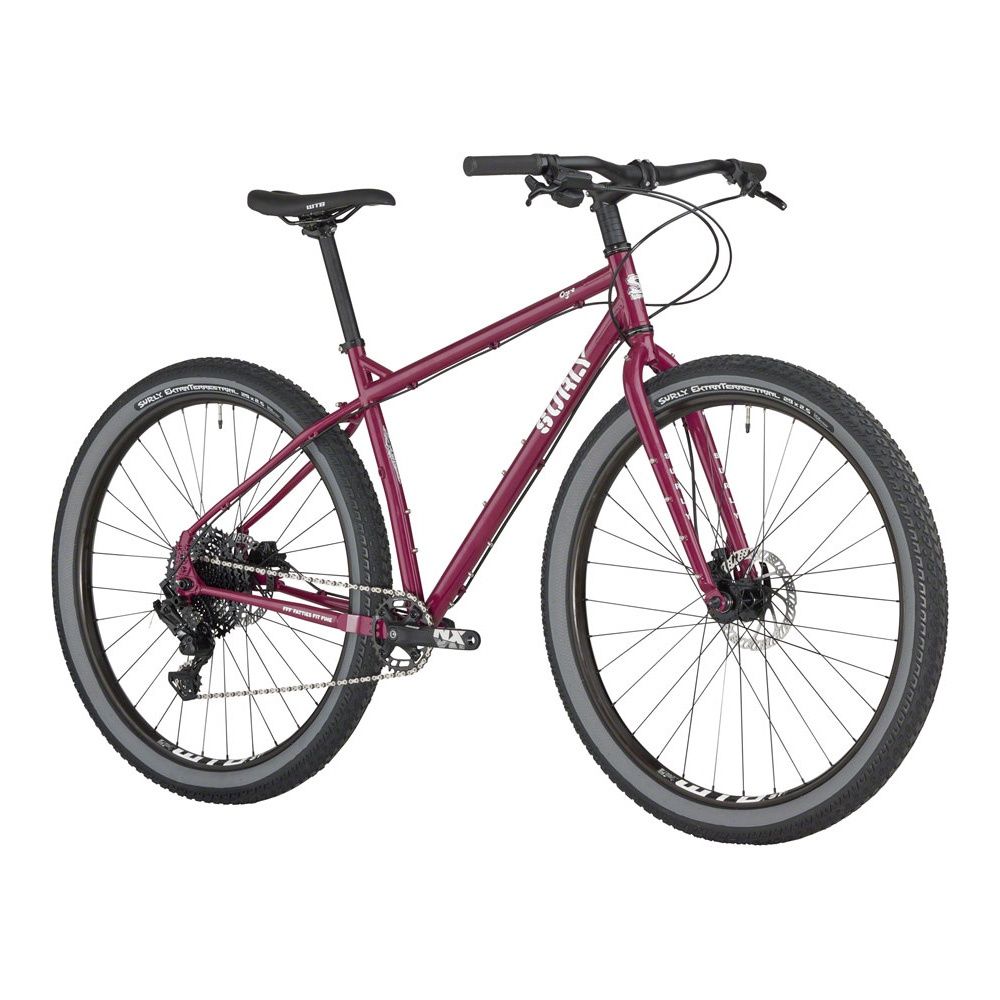

Surly Ogre

The Ogre is the ultimate companion for both your weekday commute and weekend adventures. It performs seamlessly on pavement, gravel, and even singletrack, making it versatile and reliable. Designed with several practical features, it enhances the 29er platform with:

• Horizontal slotted dropouts featuring Gnot-Boost spacing.
• Non-suspension corrected geometry for optimized handling.
• Beefy tyre clearance to tackle varied terrains with ease.

Key Features

• 100% Surly Chromoly steel: Double-butted main triangle with TIG welding for durability.
• Gnot-Boost spacing: Compatible with 135mm QR hub, 142 x 12mm thru-axle, or 148 x 12mm Boost hubs. Includes Rohloff torque arm slot and threaded eyelets for mudguards, racks, and Surly trailer mounts.
• Full-length Surly Trip Guide housing: Offers line guides for derailleurs and brakes, two sets of bottle cage mounts, upper seatstay threaded barrels, and multiple fork eyelets for racks, mudguards, and trailer mounting.
• Disc brakes only: Rear disc brake is limited to 160mm maximum rotor diameter and requires the included Surly caliper adaptor.
• E.D. coated frame: Provides extended life expectancy.
• Tyre clearance: Fits 29 x 2.5" or 27.5 x 3" tyres for versatile riding options.

Specifications

• Frame: 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated.
• Fork: 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated.
• Headset: Cane Creek 40.
• Brakes: Tektro HD-M275/HD-M276.
• Shifter: Microshift Advent X.
• Stem: Promax DA-296.
• Handlebar: Salsa Bend.
• Grips: Velo Black.
• Saddle: WTB Volt.
• Seatpost: Promax SP-2016, 27.2 x 300mm.
• Chainset: SRAM NX, 32T.
• Cassette: Microshift Advent X, 11-48t, 10-speed.
• Front Mech: n/a.
• Rear Mech: Microshift Advent X.
• Chain: KMC X10.
• Wheels: WTB ST i30 rims on Novatec hubs.
• Tyres: Surly ExtraTerrestrial 29 x 2.5", 60tpi, Tubeless Ready (Slate wall).

Whether you're commuting or exploring, the Ogre is built to handle it all with reliability, versatility, and durability.
