Vecnum FreeQence Suspension Stem

Vecnum freeQENCE - THE ultimate suspension stem
Effectively absorbs up to 75% of vibrations and shocks with the longest travel, damping, and sag.

More fun on the bike

Up to 75% less vibrations and impacts
The suspension stem freeQENCE absorbs up to 75% of all vibrations and impacts, significantly reducing fatigue. Ride more comfortably, faster, and safer on:

• Paved roads
• Cobblestones
• Gravel roads
• Singletrails
• Technical terrain

The relief provided to your wrists may also help avoid tingling and numb hands.

Geometry neutral

Parallelogram construction
The torsionally stiff and ultra-compact parallelogram design optimally absorbs vertical impacts. Unlike single pivot suspension stems, the handlebar does not tilt down, and unlike suspension forks, the frame geometry remains unchanged. The freeQENCE parallelogram features an internal spring linkage.

Top performance

In all handlebar positions
Thanks to the sophisticated parallelogram kinematics, the lever length does not affect spring characteristics. Whether you're gripping your handlebars in the hoods, drop, or top positions, the suspension and damping performance always remain optimal.

30 MM Travel

With damping & sag
Four discreet yet perfectly tuned high-tech elastomers protect you from harsh impacts and vibrations. The maximum 30mm suspension travel is split into:

• 20mm positive travel
• 10mm negative travel (similar to the sag of a suspension fork).

The freeQENCE stem offers a homogeneous, linear spring characteristic with strong progression towards the end of the stroke.

Externally adjustable

Supports riders from 50 to 120 kg
With an external, stepless adjustment, you can easily adapt the freeQENCE stem to your weight and intended riding style. The patented internal spring linkage makes setting up your desired spring characteristics easier than any suspension fork.

Spirit of gravel

Lightweight, agile, strong
The freeQENCE design is optimized for high loads and low weight, starting at just 287 grams for the 90mm length. This is only about 150 grams more than a standard stem.

Without the disadvantages of a suspension fork:

• No aerodynamic losses
• Your bike remains light and agile for sprinting and riding out of the saddle
• The bike geometry stays unchanged
• No lockout is required

Simply upgrade your bike

The suspension stem freeQENCE is mounted just like a standard A-head stem. Upgrading is easy and takes only a few minutes. Thanks to the open face 4-screw clamping, you don’t need to dismount anything from your handlebars.

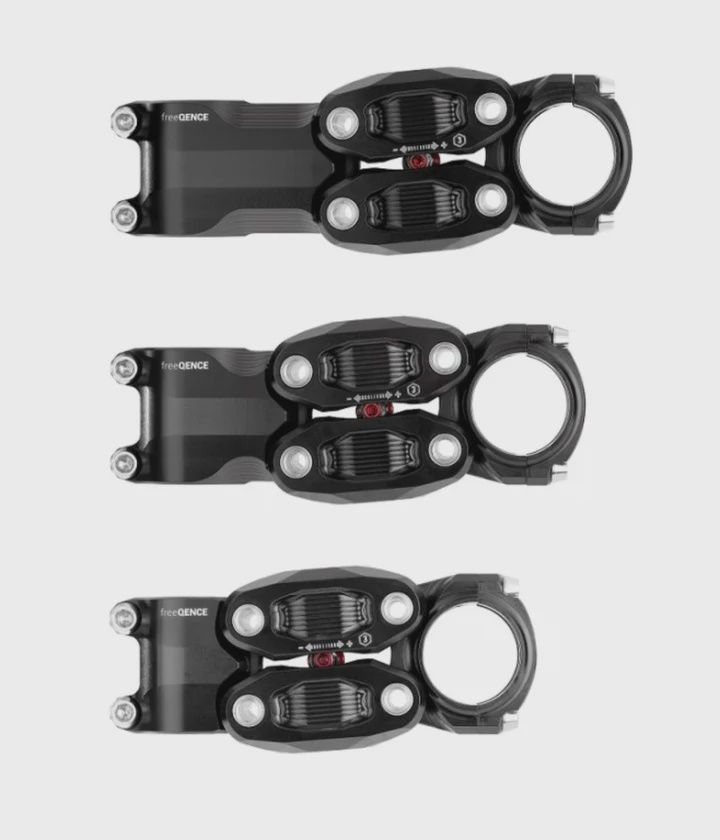

Available in 3 lengths

For all suspensionless bikes
Choose from 90mm, 105mm, or 120mm lengths. Compatible with:

• 1⅛ inch forks (not suitable for Canyon 1¼ inch forks)
• All handlebar types with 31.8mm diameter, including carbon handlebars

Note: Please check the required shaft length of your fork.
