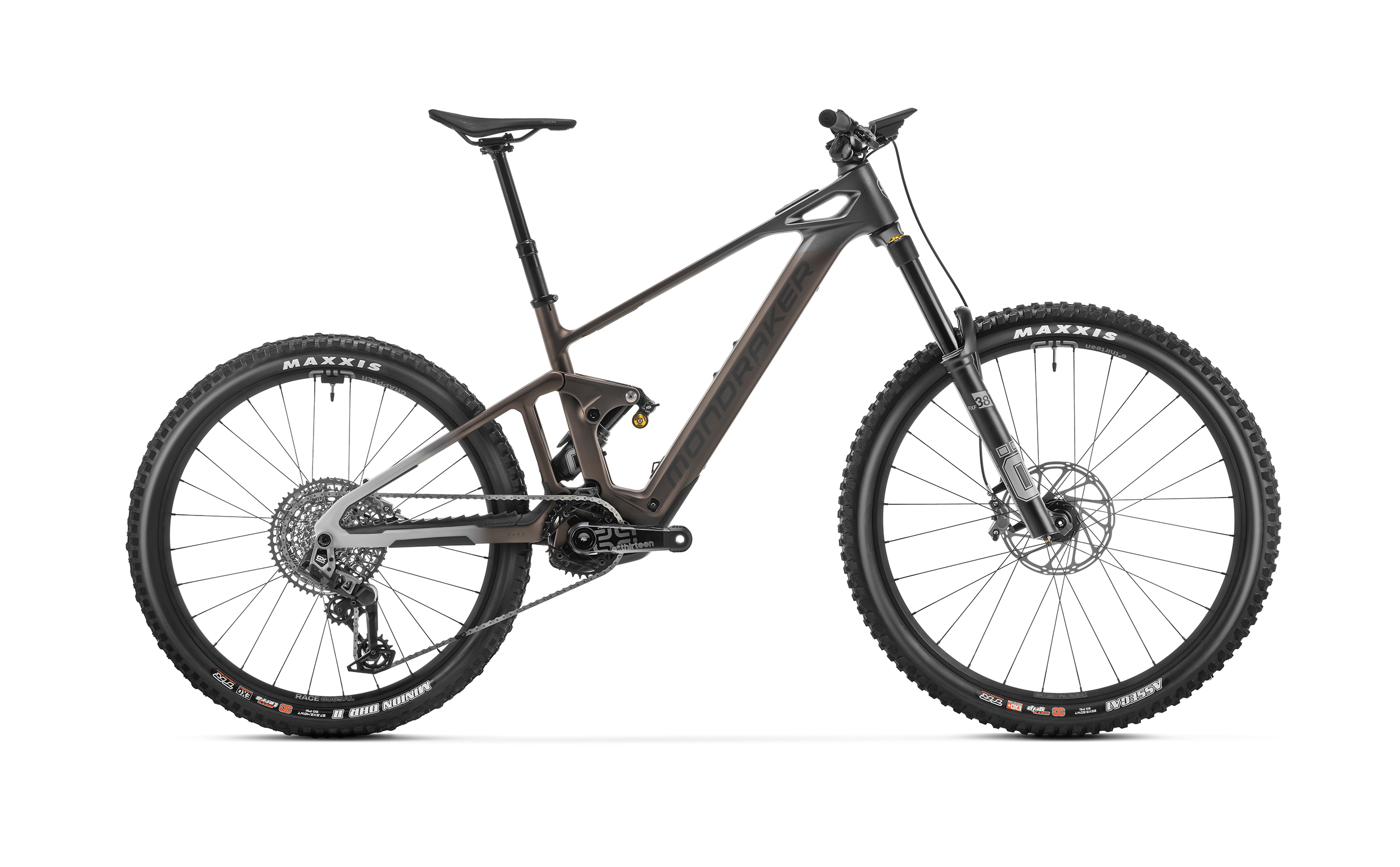

Mondraker Dune RR

£8,499.00 VAT included

DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20Kg it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.

TECHNICAL SPECS

  • frame

    Frame

    Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.



    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings



    shock settings

    Shock settings

    C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

  • fork

    Fork

    Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber



    headset

    Headset

    Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing

  • stem

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore



    handlebar

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm



    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm

  • saddle

    Saddle

    Fizik Terra Aidon Slim X5



    front brake

    Front brake

    Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads



    brake lever

    Brake lever

    Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

  • rims

    Rims

    e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27”5 rear



    spokes

    Spokes

    e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

  • front hub

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts



    rear hub

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead



    rear tire

    Rear tire

    Maxxis Minion DHR II 27’5×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

  • crankset

    Crankset

    E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm



    rings

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

  • chain

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock



    rear derrailleur

    Rear derrailleur

    Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s



    casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

  • weight

    Weight

    19,6 kg



    display

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

  • motor

    Motor

    Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide



    battery

    Battery

    Bosch Compact Powertube 400Wh

Frame Size

Large, Medium, Small, X-Large
