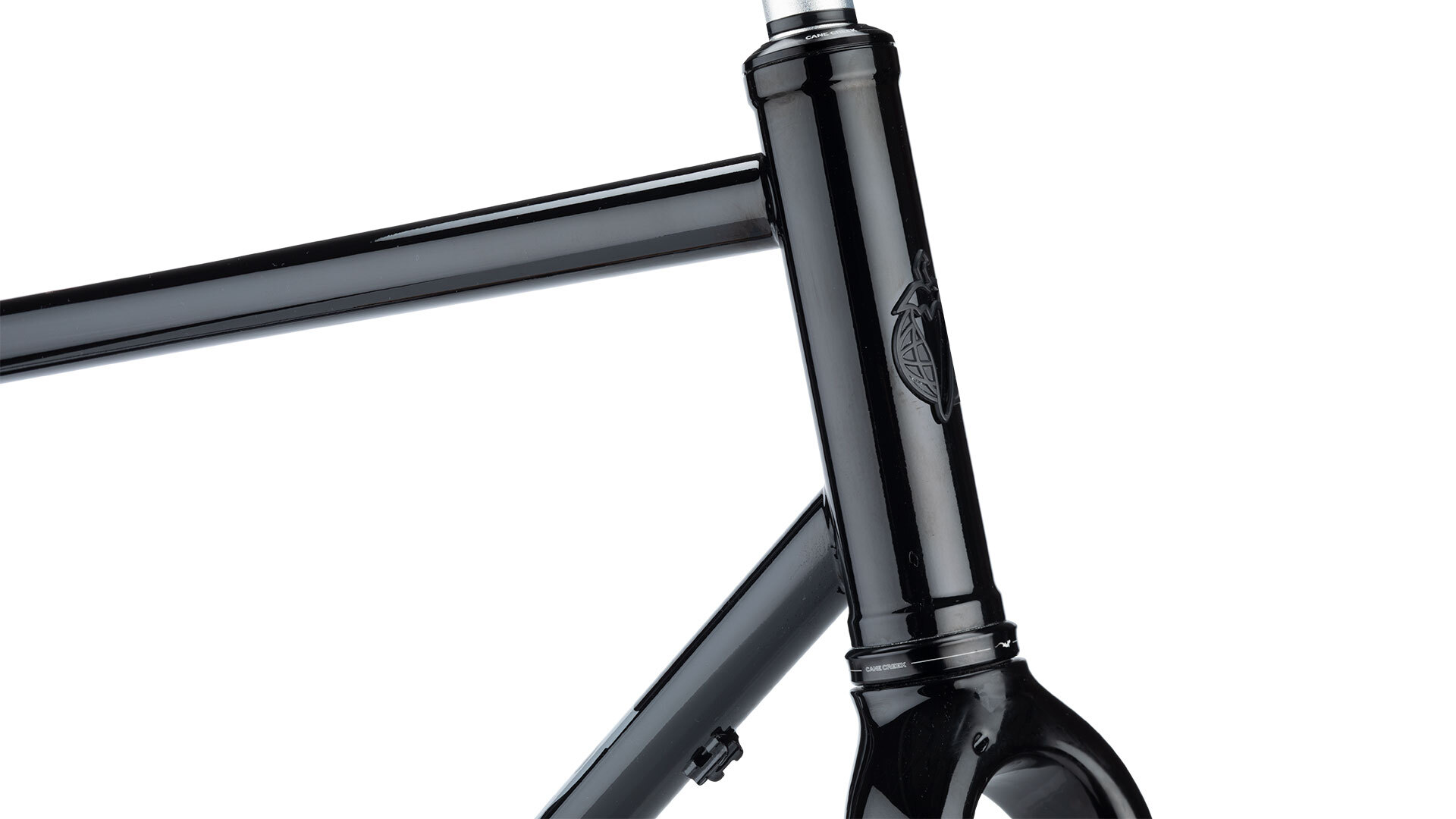

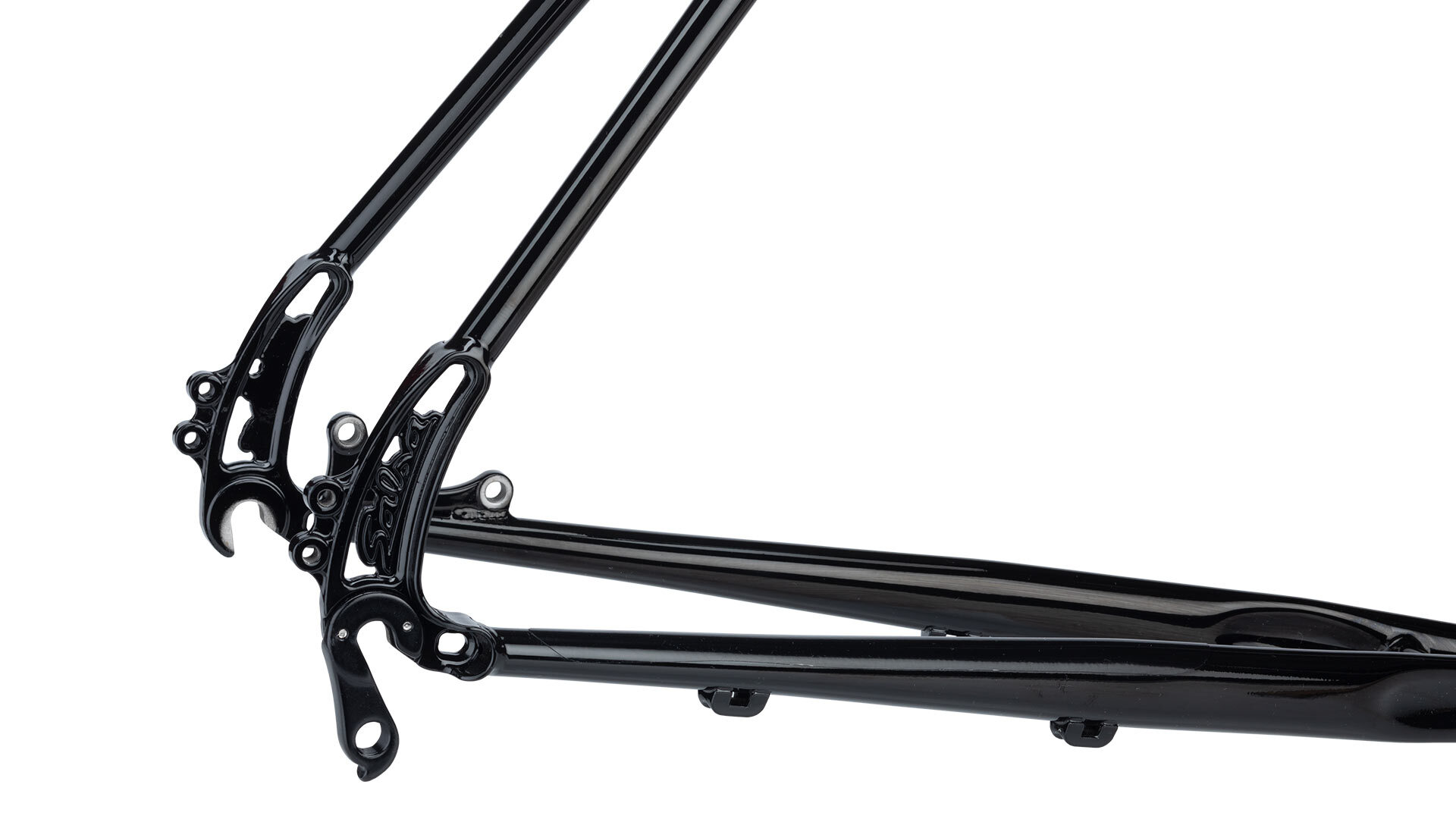

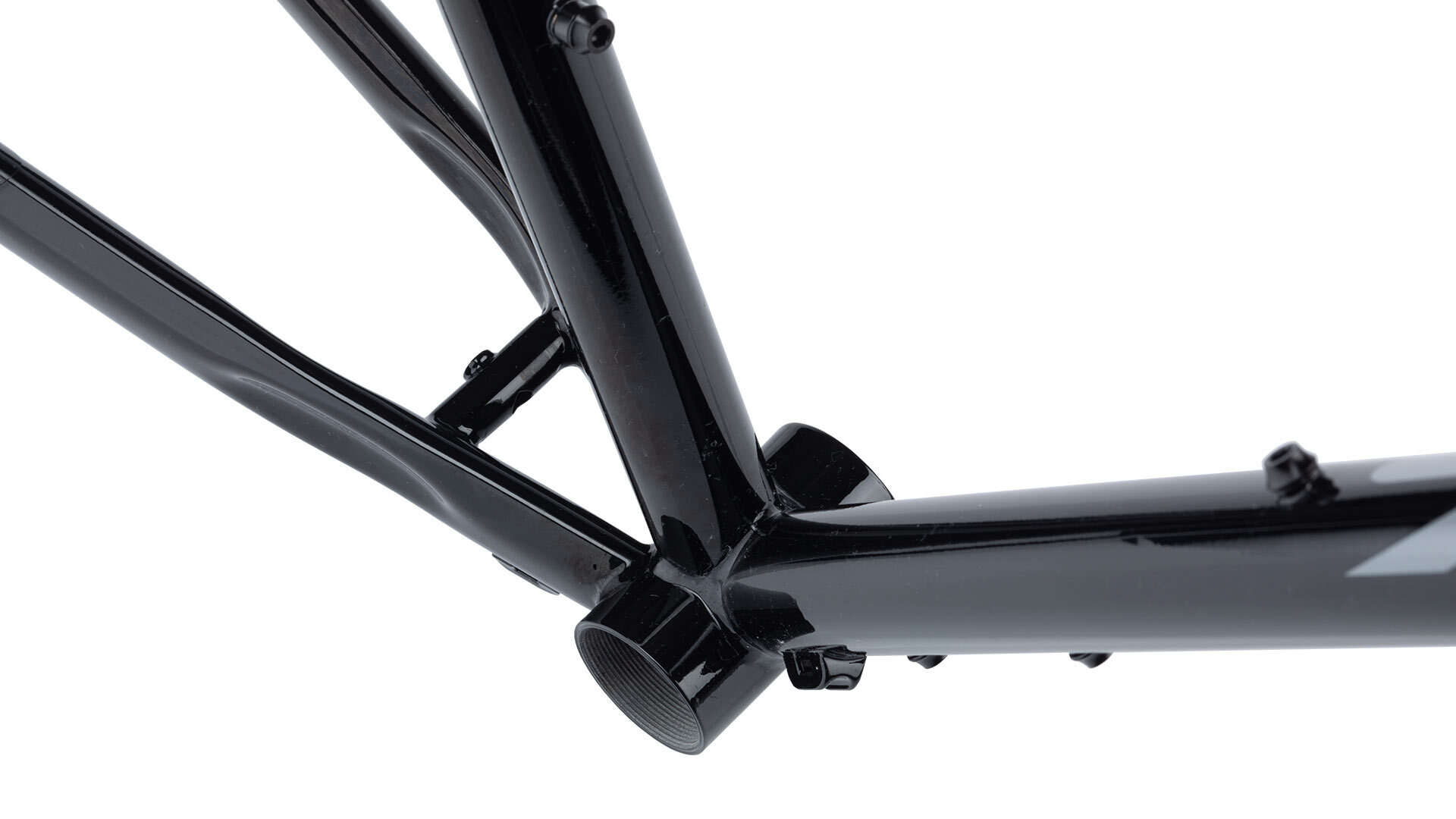

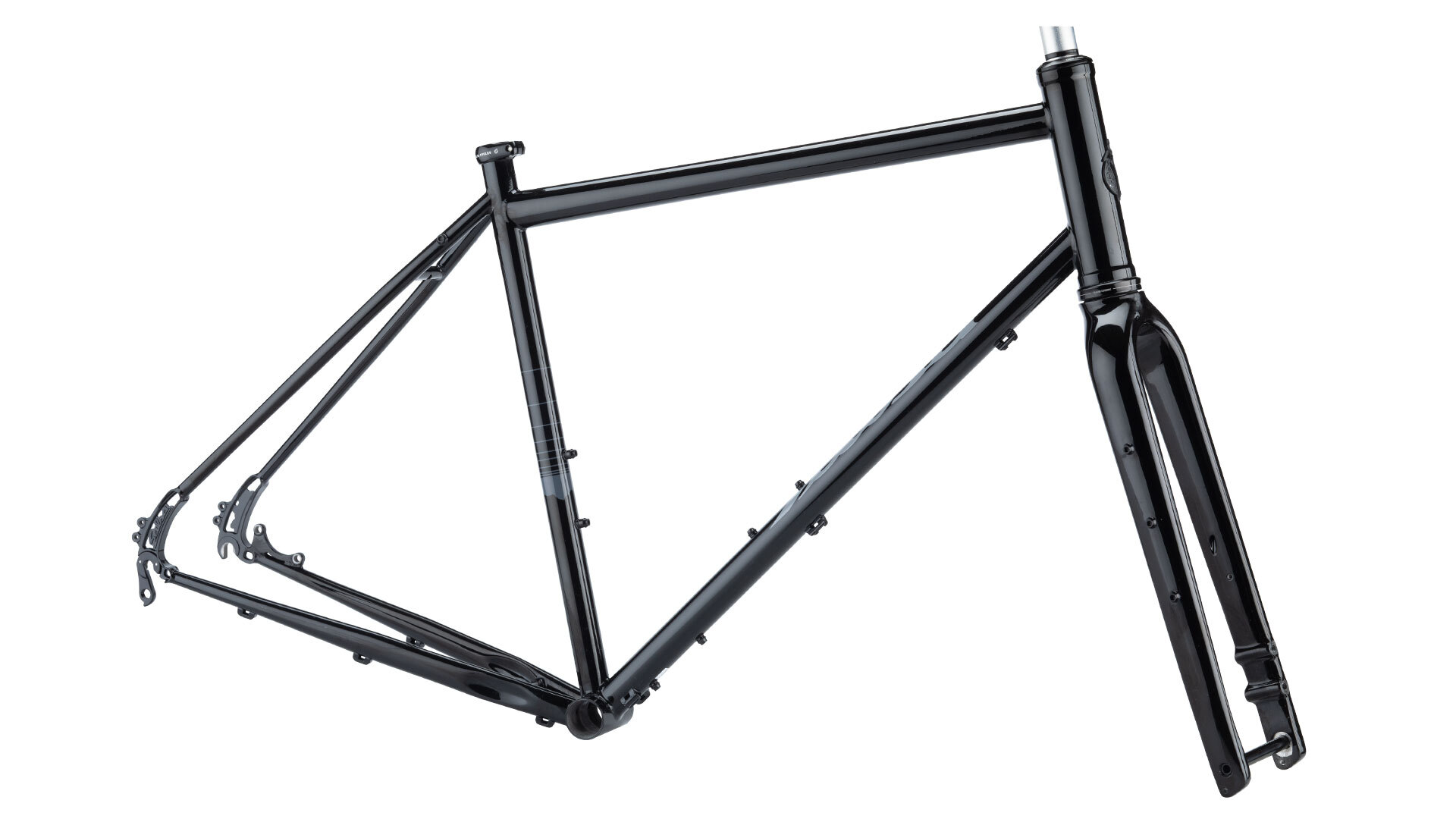

VAYA FRAMESET

Vaya is designed to handle any road surface, from pavement to gravel to dirt. Whether you’re on a fast tour or just taking your time, this all-road adventure and light touring bike is a versatile machine that feels great lightly loaded or unloaded.
The CroMoly frame of the Vaya is paired with a Waxwing fork for a delightful ride quality. The frameset is the perfect foundation for a highly capable all-road or light touring bike.

Design Wheel/Tire Size
700c x 50mm w/o fenders

Alternate Wheel/ Tire Size
700c x 45mm w/ fenders

Fork Length
405mm

Fork Offset
50mm

Headset-Upper
ZS44

Headset-Lower
EC44

Seatpost
27.2mm

Seat Collar
30mm

Front Derailleur Mount
Band clamp, 28.6mm, bottom pull

Bottom Bracket
68mm BSA, threaded

Crankset (Max Ring)
1x crankset: 46t max, 2x crankset:53/39t max, 3x crankset: 53/39/30t max

Rear Brake (Rotor)
51mm standard, (140-160mm)

Rear Spacing
135mm

Rear Axle Size
10 x 135mm QR

Derailleur Hanger
FS2310

Rack Mounts
Yes

Fender Mounts
Yes, only compatible with QR fenders

Bottle Mounts
3

Stem Clamp
28.6mm

Crown Race
40mm 36° integrated crown race

Front Brake (Rotor)
Flat mount 160, 160mm max, flat mount frame standard 35mm thickness, 42mm bolt length

Front Spacing
100mm

Front Axle
Steel fork: quick-releaseCarbon fork: thru-axle, M12 x 120 L,TP=1.5, TL=20mm
