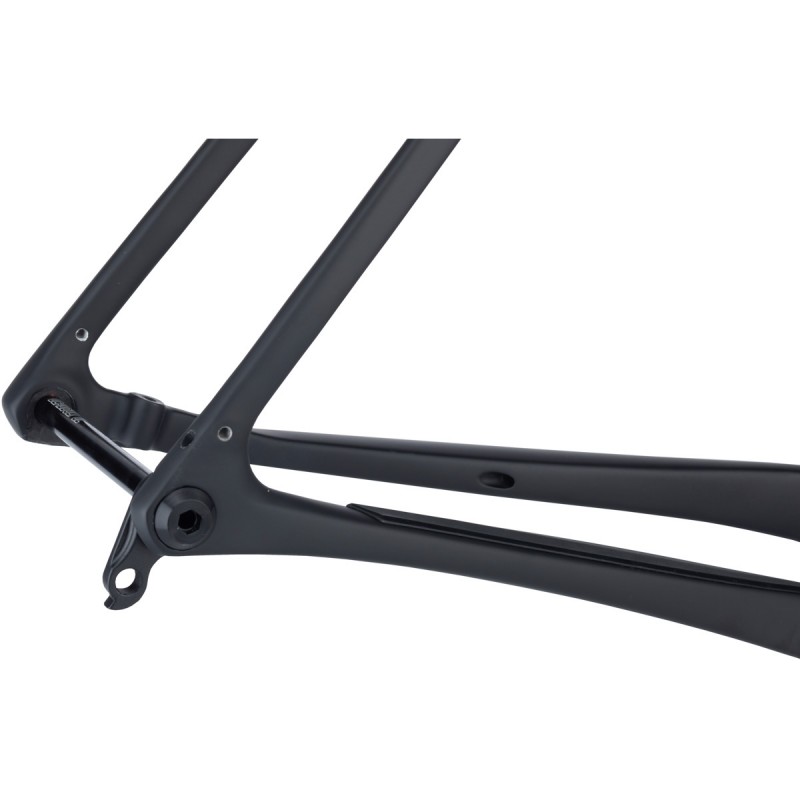

Warbird Carbon Gravel Frameset

£2,260.00 VAT included

SKU: N/A Categories: , , Tags: , ,

Warbird is Salsa’s gravel race bike, built off years of experience racing in some of the nation’s premier gravel events. It’s designed to survive and thrive on anything from the often-hazardous B-roads that make up much of the Midwest gravel scene to the fire roads that climb to the heavens on the coasts.

Max Tire OD 700c: 716mm
650b: 696mm
Design Wheel/Tire Size 622 – 32 (700 x 32mm)
Alternate Wheel/Tire Size 622 – 32-45 (700c x 32-45mm / 1.2-1.8″)
584 – 47-51 (650b x 47mm-51mm / 1.85-2.0″)
Suspension Fork Length (Travel) 427mm axle-to-crown (40mm travel)
Rigid Fork Length 405mm
Fork Offset 50mm
Headset-Upper IS41
Headset-Lower IS52
Seatpost 27.2mm
Seat Collar 32.0mm
Bottom Bracket BB86 PressFit
Crankset 1x: 44t max; 2x: 52/36t max, 46/30t minimum
Rear Brake (Rotor) Flat mount 140, 140-160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing 142mm
Rear Axle M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger Hanger 465, QBP# FS2322
Fender Mounts Yes, required fender hardware included
Rack Mounts Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
Water Bottle Mounts Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
Downtube Accessory Mount Yes, one pair
Toptube Mounts Yes, compatible with Salsa Toptube bag
Stem Clamp Ø28.6mm
Crown Race Integrated SHIS 40, 36° angle
Front Brake (Rotor) Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
Front Spacing 100mm
Front Thru-Axle M12 x 120L, TP = 1.5, TL = 12mm
Three-Pack Mounts One mount per fork leg
Rack Mounts 165mm Lowrider compatible, Salsa Down Under rack recommended
Frame Size

52.5cm, 54.5cm, 56cm, 57.5cm, 59cm
